Parent Layer: [+] Structure

Name: STPR Structure Top (Ft; 500), from GLEN; IL/IN+ (2021ilgs)

Display Field:

Type: Raster Layer

Geometry Type: null

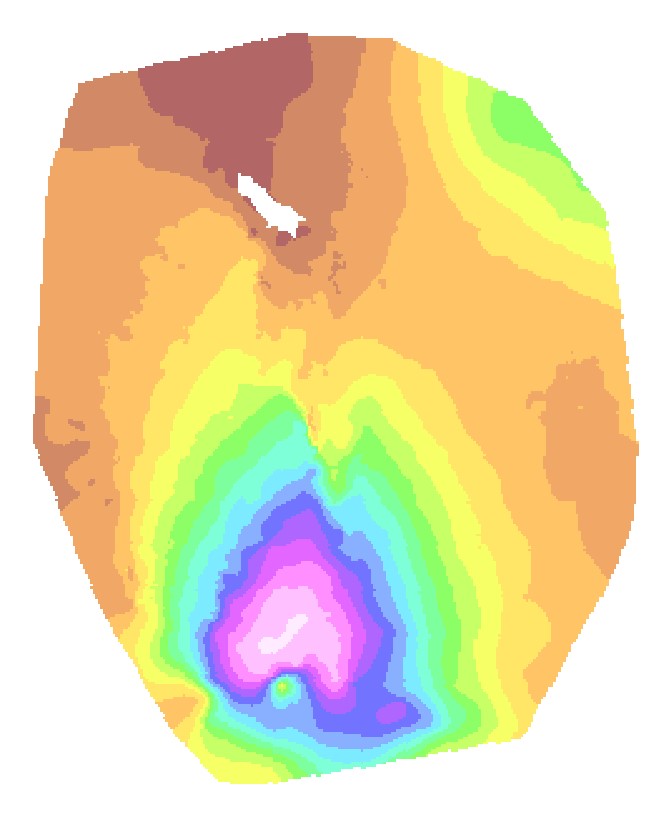

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This is a subsurface elevation grid constructed upon the top of the St. Peter Sandstone projected form Galena structure grids of Illinois, Indiana, and part of Kentucky, Michigan, Wisconsin, Iowa. The map was created using PETRA software by IHS. Data imported to the PETRA Main. The contour lines were created by Map module. The grid was created using a "Kingdom Flex Gridding" mapping algorithm. Grid size: X=8000 ft Y=8000 ft, unit in feet, zero-contour-adjustment, search radius 0, minimum tension, smooth contour line, no faults or hand contouring applied. Eroded area in north-central Illinois was clipped.</SPAN></P><P><SPAN>Author/Originator: Illinois State Geological Survey</SPAN></P><P><SPAN>Date Created: 2021</SPAN></P></DIV></DIV></DIV>

Service Item Id: 4298427439e14b5792e442b7b5b07939

Copyright Text: Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -2713006.673031903
YMin: -2157543.6920594955
XMax: -177011.74503190303
YMax: 378451.2359405042
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

N/A

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeNone

Type ID Field: null

Fields: None


Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
