Name: TRNN Well Control; MRCI (2024kygs)

Display Field: WELLNAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

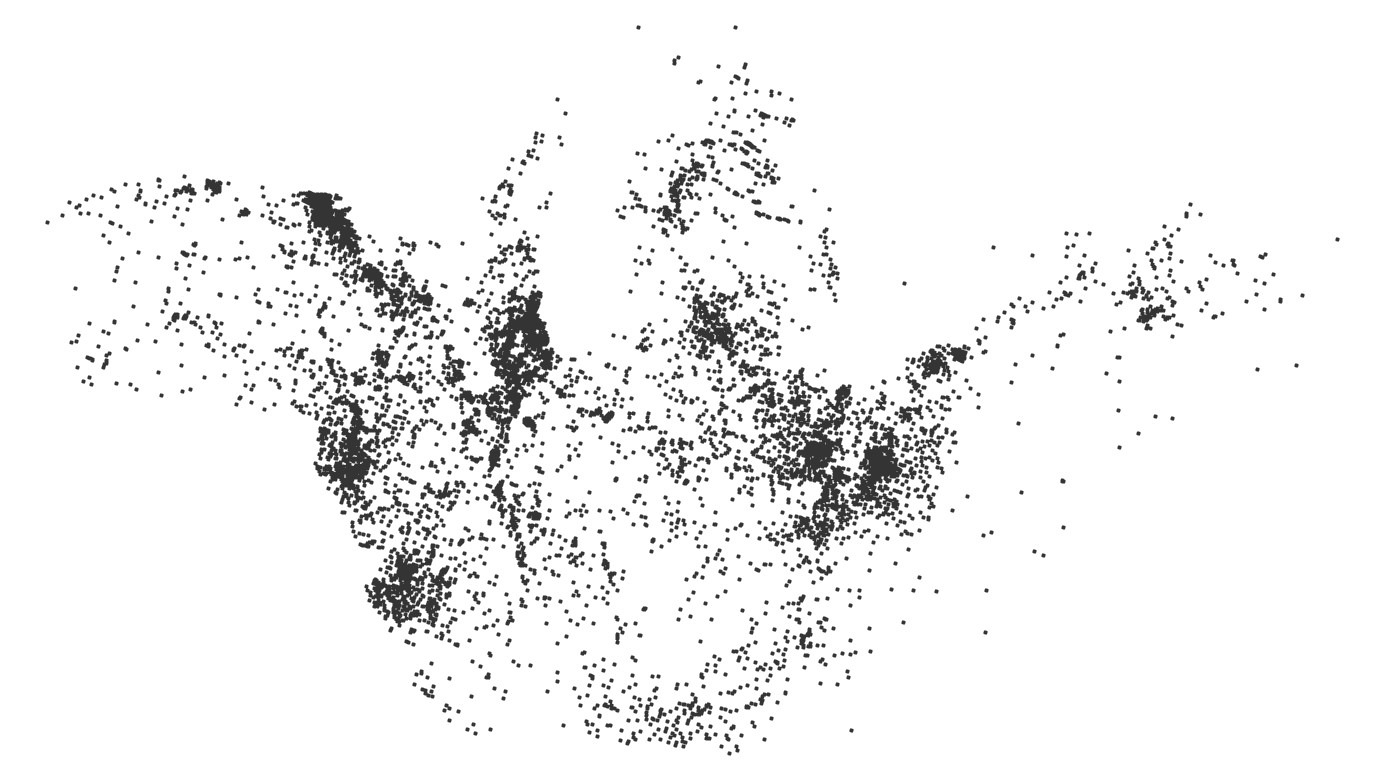

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This compilation dataset contains the oil and gas well locations and stratigraphic tops information used to create elevation maps for the Trenton Limestone. Stratigraphic tops for the Trenton Limestone are measured depth feet (TRNN_MD) and subsea feet (TRNN_SS). Null data for Trenton subsea tops are recorded as -99999.</SPAN></P><P><SPAN>Compilation data files are from "Structure map on top of the Lexington/Trenton Formation," Utica Shale Play book (Hickman and others, 2015); "Structure contour map on the top of the Galena Group," Illinois Basin Regional Structure Isopach Mapping, 2021; "TRNN-BKRV Well Control," Michigan Geological Repository for Research and Education, 2021; Trenton/Lexington tops spreadsheet, (ODNR, 2024); Geosam well database, Iowa Geological Survey, 2024; Wisconsin well control digital stratigraphic database (WOFR2009-03), WGS, 2009; Trenton well control tops spreadsheet, Indiana Geological and Water Survey (IGWS, 2024).</SPAN></P><P><SPAN>Author/Originator: Tom Sparks, Kentucky Geological Survey</SPAN></P><P><SPAN>Date Created: 2024</SPAN></P></DIV></DIV></DIV>

Service Item Id: 4298427439e14b5792e442b7b5b07939

Copyright Text: Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -3923877.223514105
YMin: -2166743.096851042
XMax: 2257659.7142757187
YMax: 1312278.5357845016
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [115, 178, 255, 255]
Size: 2.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 0] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• UWI_API ( type: esriFieldTypeString, alias: UWI_API, length: 20 )
• WELLNAME ( type: esriFieldTypeString, alias: WELLNAME, length: 50 )
• LAT ( type: esriFieldTypeDouble, alias: LAT )
• LON ( type: esriFieldTypeDouble, alias: LON )
• ELEV ( type: esriFieldTypeInteger, alias: ELEV )
• TD ( type: esriFieldTypeInteger, alias: TD )
• FM_TD ( type: esriFieldTypeString, alias: FM_TD, length: 25 )
• SYM ( type: esriFieldTypeString, alias: SYM, length: 20 )
• COUNTY ( type: esriFieldTypeString, alias: COUNTY, length: 30 )
• STATE ( type: esriFieldTypeString, alias: STATE, length: 20 )
• SOURCE ( type: esriFieldTypeString, alias: SOURCE, length: 20 )
• DATUM ( type: esriFieldTypeInteger, alias: DATUM )
• TRNN_MD ( type: esriFieldTypeInteger, alias: TRNN_MD )
• TRNN_SS ( type: esriFieldTypeInteger, alias: TRNN_SS )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
