Name: TRNN Structure Top (Ft; 500); MRCI (2024kygs)

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

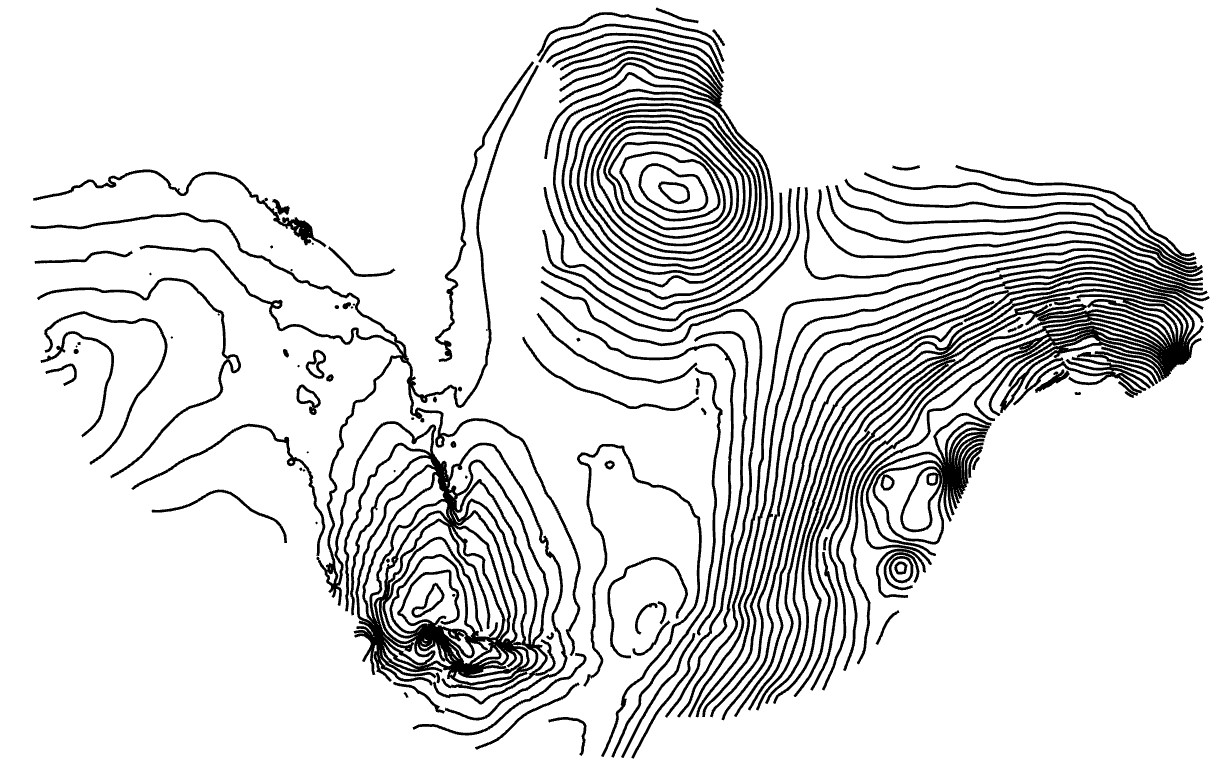

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This is a compilation structure contour map constructed upon the top of the Trenton Limestone and the tops of laterally equivalent Lexington Limestone or top of Galena Group units.</SPAN></P><P><SPAN>The structure contours were created from previously created contour map datasets. Compilation data files are from "Structure map on top of the Lexington/Trenton Formation," Utica Shale Play book (Hickman and others, 2015); "Structure contour map on the top of the Galena Group," Illinois Basin Regional Structure Isopach Mapping (ISGS,2021); "Top of Middle Ordovician/Base of Maquoketa,", Plate 8, Structural Evolution of an Intracratonic Rift System, J.B. Hickman Univ. Kentucky PhD dissertation (Hickman, 2011); "TRNN-BKRV Structure Top," Michigan Geological Repository for Research and Education (MGREE, 2021); Galena Dolomite/Kimmswick Formation map (figure 14), U.S. Geological Survey Professional Paper 1405-B (Young and Siegel, 1992); Iowa Galena Group elevation grid (IGS, 2024); Wisconsin well control digital stratigraphic database (WOFR2009-03) (WGS, 2009); Trenton shapefile (Indiana) and associated well control tops spreadsheet, Indiana Geological and Water Survey (IGWS, 2024).</SPAN></P><P><SPAN>Author/Originator: Tom Sparks, Kentucky Geological Survey</SPAN></P><P><SPAN>Date Created: 2024</SPAN></P></DIV></DIV></DIV>

Service Item Id: 4298427439e14b5792e442b7b5b07939

Copyright Text: Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -3864578.699502461
YMin: -2362383.236171064
XMax: 2147696.7451592814
YMax: 1461328.6359596807
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [0, 76, 115, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: [Contour]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 20 )
• VALUE ( type: esriFieldTypeString, alias: VALUE, length: 20 )
• Contour ( type: esriFieldTypeDouble, alias: Contour )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
