Parent Layer: [+] CO2

Name: UTIC-PPLS CO2 Storage Grid Data; AB (2019kygs)

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

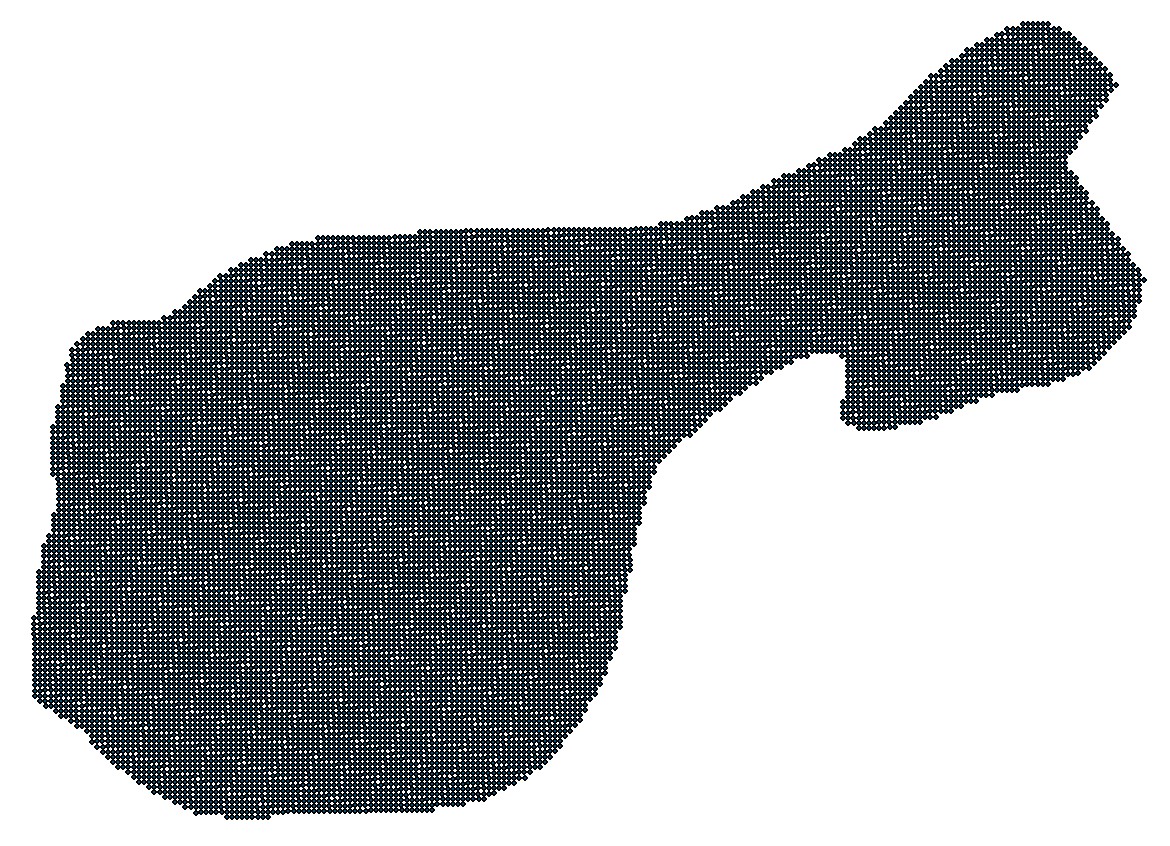

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>CO2 Storage Utica-Point Pleasant potential gridded control points (3000 meter x 3000 meter).</SPAN></P><P><SPAN>Utica-Point Pleasant CO2 potential gridded control points extracted from Petra© project in x,y,z format. Coordinates (x,y) are in UTM17, NAD83. Storage attributes calculated and presented in six (6) columns: UTIC_10pct, PTPL_10pct, Storage_10pct, UTIC100pct, PTPL100pct, and MaxStorage_100pct (representing 10% efficiency to 100% maximum capacity for both individual and combined units). Values are in CO2 short tons per original 3000 x 3000 meter cell size. Dataset was clipped to the combined Utica-Point Pleasant Play areal extent. Null data for CO2 storage recorded as -99999.</SPAN></P><P><SPAN>Data and storage analysis were generated for Appalachian Basin topical report (Carter, and others, 2019).</SPAN></P><P><SPAN>Some geodatabase columns were renamed to accommodate shapefile format. Shapefile names for CO2 storage are the following: UTIC_10pct, PTPL_10pct, Storage_10, UTIC100ptc, PTPL100ptc, MaxStorage.</SPAN></P><P><SPAN>Author/Originator: Thomas N. Sparks, Brandon C. Nuttall, Stephen F. Greb, Kentucky Geological Survey</SPAN></P><P><SPAN>Date Created: 2019</SPAN></P><P><SPAN>Reference cited:</SPAN></P><P><SPAN>Carter, K.M., Moore, J.P., Lewis, J.E., Nuttall, B.C., Dinterman, P., Daft, G.W., Jr., Anthony, R.V., Schmid, K.W., Dunst, B.J., Sparks, T.N., Greb, S.F., Solis, M.P., McDonald, J., and Ortt, R.A., 2019, Midwest Regional Carbon Sequestration Partnership Phase III—Regional geologic characterization enhanced recovery opportunities in the Appalachian Basin: Contract report to U.S. DOE, Cooperative Agreement No. DE-FC26-05NT42589, 103 p.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 4298427439e14b5792e442b7b5b07939

Copyright Text: Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -170718.1635779068
YMin: -1322257.4294883348
XMax: 1951045.8347809166
YMax: 195627.36236319318
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [0, 76, 115, 255]
Size: 2.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• x ( type: esriFieldTypeDouble, alias: x )
• y ( type: esriFieldTypeDouble, alias: y )
• State ( type: esriFieldTypeString, alias: State, length: 15 )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 20 )
• FID ( type: esriFieldTypeOID, alias: FID )
• OBJECTID ( type: esriFieldTypeInteger, alias: OBJECTID )
• Informatio ( type: esriFieldTypeString, alias: Informatio, length: 60 )
• UTIC_10pct ( type: esriFieldTypeDouble, alias: UTIC_10pct )
• PTPL_10pct ( type: esriFieldTypeDouble, alias: PTPL_10pct )
• Storage_10 ( type: esriFieldTypeDouble, alias: Storage_10 )
• UTIC100ptc ( type: esriFieldTypeDouble, alias: UTIC100ptc )
• PTPL100ptc ( type: esriFieldTypeDouble, alias: PTPL100ptc )
• MaxStorage ( type: esriFieldTypeDouble, alias: MaxStorage )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
