Parent Layer: [+] Structure

Name: PCMB Well Control; IL/IN+ (2021ilgs)

Display Field: WELLNAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This dataset contains the oil and gas well locations and stratigraphic tops information used to create elevation maps for the Precambrian. All location and Attributes information is as recorded in the ISGS Wells and Borings database. The collection contains data for over 90 wells that at least penetrated Precambrian. The attribute information includes UWI/API number, latitude, and longitude, well name, well number, operator, well TD, Datum, Depth of Precambrian, county, and state. </SPAN></P><P><SPAN>Author/Originator: Illinois State Geological Survey</SPAN></P><P><SPAN>Date Created: 2021</SPAN></P></DIV></DIV></DIV>

Service Item Id: 6a1448410eaf4181a1997749503e132f

Copyright Text: Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -2513784.7352899644
YMin: -2010330.8158036247
XMax: -353995.312028383
YMax: 316322.3902393556
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [232, 190, 255, 255]
Size: 2.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• UWI_API ( type: esriFieldTypeDouble, alias: UWI_API )
• STATE ( type: esriFieldTypeString, alias: STATE, length: 254 )
• COUNTY ( type: esriFieldTypeString, alias: COUNTY, length: 254 )
• SURFLAT ( type: esriFieldTypeDouble, alias: SURFLAT )
• SURFLON ( type: esriFieldTypeDouble, alias: SURFLON )
• WELLNAME ( type: esriFieldTypeString, alias: WELLNAME, length: 254 )
• WELLNO ( type: esriFieldTypeString, alias: WELLNO, length: 254 )
• OPER ( type: esriFieldTypeString, alias: OPER, length: 254 )
• DATUM ( type: esriFieldTypeDouble, alias: DATUM )
• PRECAMBRIA ( type: esriFieldTypeDouble, alias: PRECAMBRIA )
• WELL_TD ( type: esriFieldTypeDouble, alias: WELL_TD )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

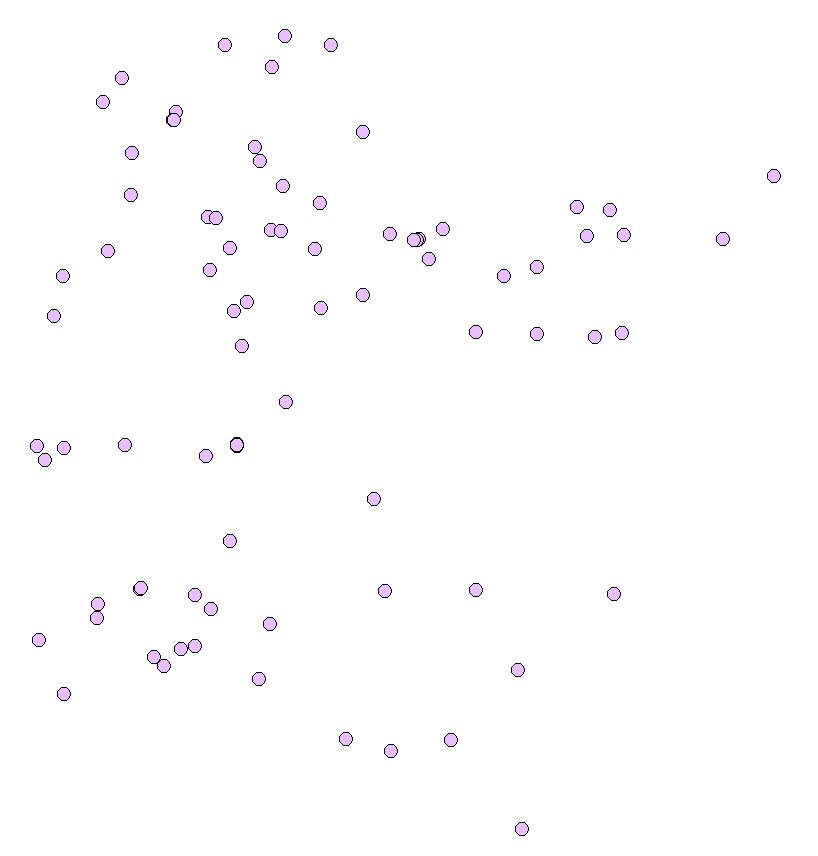

  Iteminfo   Thumbnail   Metadata
