Parent Layer: [+] Thickness

Name: SLIN Isopach (Ft; 20); OH(AB) (2017ohgs)

Display Field: Id

Type: Feature Layer

Geometry Type: esriGeometryPolyline

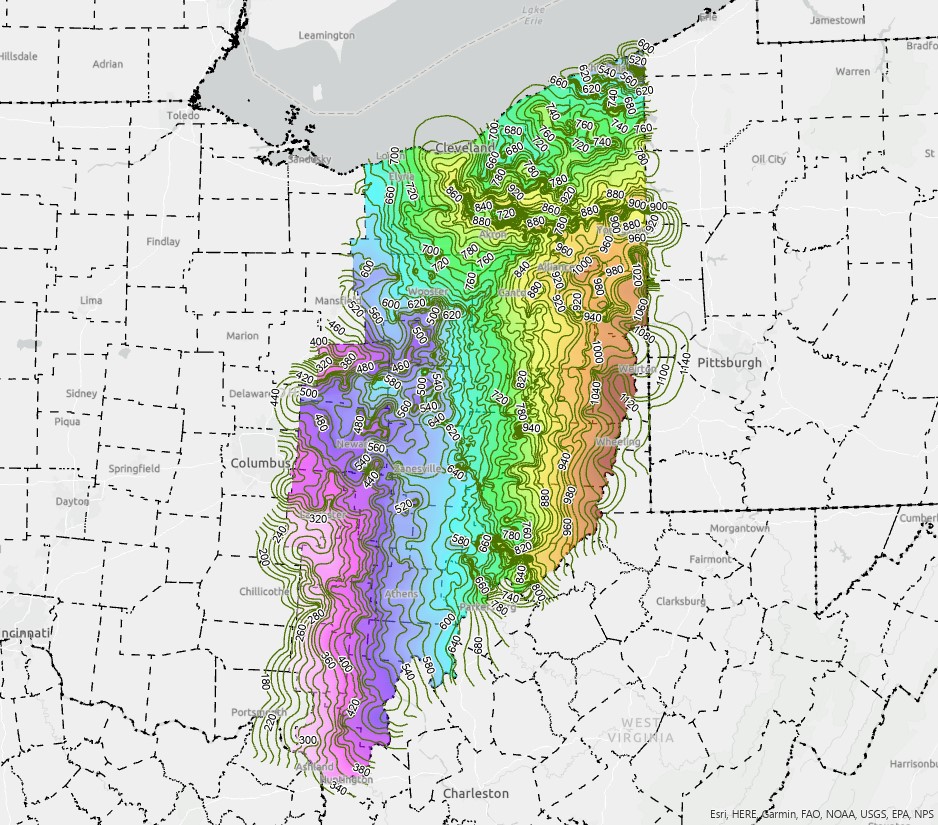

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 11 0;"><SPAN>This is an isopach contour map of the Salina Group in eastern Ohio. This dataset was originally created for the Midwestern Regional Carbon Sequestration Partnership 2017 final report. This data set contains subsurface information on the undifferentiated Upper Silurian Salina Group in eastern Ohio compiled from hardcopy and digital public data housed at the Ohio Department of Natural Resources (ODNR) Division of Geological Survey and Division of Oil and Gas Resources Management. Data points were determined by geologist using well logs throughout eastern Ohio in Petra software, and then exported in ArcGIS for contouring. Only eastern Ohio was studied, although the formation does extend beyond the area of interest. Suspect tops were identified using cluster number. The resultant tops were used to generate initial contours using Inverse Distance Weighting in Geostatistical Analysist in ArcGIS. These initial contours were then hand edited to reflect formation thickness distribution patterns. The edited contours were then regridded to produce the final thickness grid. </SPAN></P><P STYLE="margin:0 0 11 0;"><SPAN>This work was funded in part of the Department of Energy Midwestern Regional Carbon Sequestration Partnership (Department of Energy Cooperative Agreement No. DE-FC26-05NT42589), and the Ohio severance taxes. The following staff members from the ODNR Division of Geological Survey worked on the dataset: Michael Solis and Julie Bloxson are the primary authors; technical support was provided by Dominique Haneberg-Diggs, Nathan Erber, and J.D. Stucker; additional contributions and oversight were provided by Mohammad Fakhari, Charles Salmons, Michael Angle, and Thomas Serenko. </SPAN></P><P STYLE="margin:0 0 11 0;"><SPAN>Author/Originator: Michael Solis and Julie Bloxson</SPAN></P><P STYLE="margin:0 0 11 0;"><SPAN>Date Created: 2017</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: Midwest Regional Carbon Sequestration Partnership (MRCSP) and the Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -295018.7319676053
YMin: -1524718.4895404791
XMax: 481767.43336459424
YMax: -177539.61519225445
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [76, 115, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: [Contour]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• OBJECTID ( type: esriFieldTypeInteger, alias: OBJECTID )
• Id ( type: esriFieldTypeInteger, alias: Id )
• Contour ( type: esriFieldTypeDouble, alias: Contour )
• Shape_Leng ( type: esriFieldTypeDouble, alias: Shape_Leng )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
