Name: BILD Structure Top (Ft; 40); OH(AB)/WV- (2017ohgs)

Display Field: Id

Type: Feature Layer

Geometry Type: esriGeometryPolyline

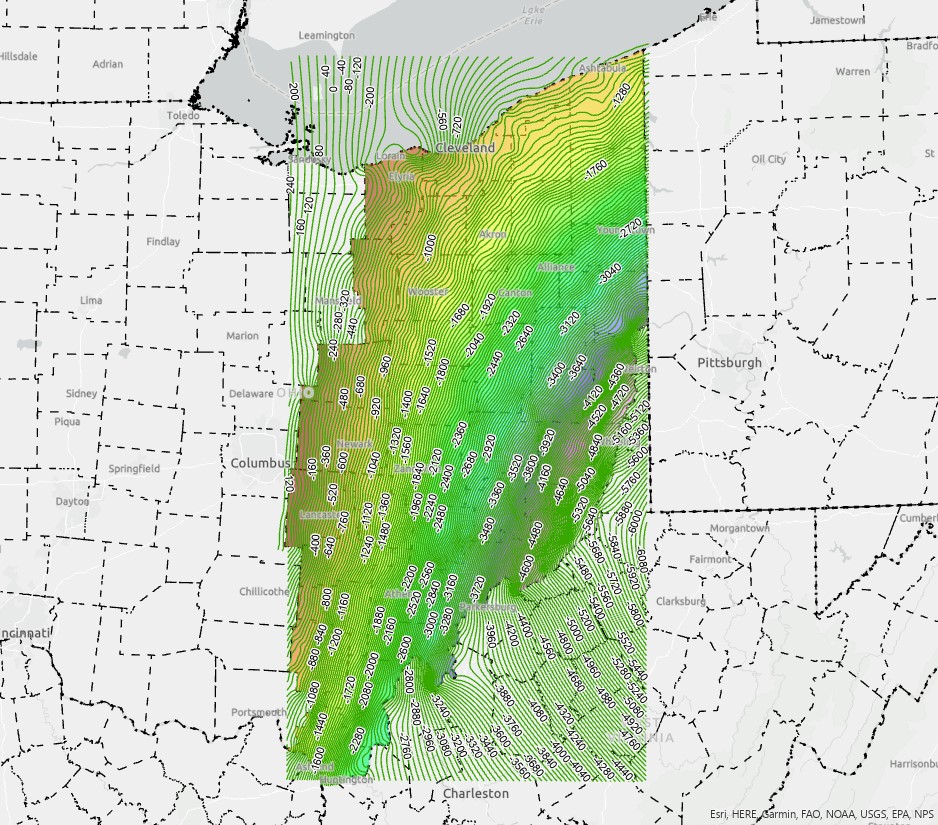

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 11 0;"><SPAN>This is a structure contour map constructed upon the top of the Bass Island Dolomite in eastern Ohio. This dataset was originally created for the Midwestern Regional Carbon Sequestration Partnership 2017 final report. Only eastern Ohio was studied, although the formation does extend beyond the area of interest. This data set contains subsurface information on the Silurian Bass Islands Dolomite in eastern Ohio compiled from hardcopy and digital public data housed at the Ohio Department of Natural Resources (ODNR) Division of Geological Survey and Division of Oil and Gas Resources Management. Data points were determined by geologist using well logs throughout eastern Ohio in Petra software, and then exported in ArcGIS for contouring. It potentially includes part of the Keyser Limestone in southeast Ohio, as determined through well log data variations in density and photoelectric effect. Suspect tops were identified using cluster number. The resultant tops were gridded using both high-data density and low-data density models which were contoured, clipped, merged, and edited. The seamless contours were re-gridded with ArcGIS 3D Analyst.</SPAN></P><P STYLE="margin:0 0 11 0;"><SPAN><SPAN>This work was funded in part of the Department of Energy Midwestern Regional Carbon Sequestration Partnership (Department of Energy Cooperative Agreement No. DE-FC26-05NT42589), and the Ohio severance taxes. The following staff members from the ODNR Division of Geological Survey worked on the dataset: Julie Bloxson and Michael Solis are the primary authors; technical support was provided by Dominique Haneberg-Diggs, Nathan Erber, and J.D. Stucker; additional contributions and oversight were provided by Mohammad Fakhari, Charles Salmons, Michael Angle, and Thomas Serenko. </SPAN></SPAN></P><P STYLE="margin:0 0 11 0;"><SPAN><SPAN>Author/Originator: Julie Bloxson and Michael Solis</SPAN></SPAN></P><P STYLE="margin:0 0 11 0;"><SPAN><SPAN>Date Created: 2017</SPAN></SPAN></P></DIV></DIV></DIV>
