Parent Layer: [+] Structure

Name: TCRR Structure Top (Ft; 50); WV (2018wi)

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

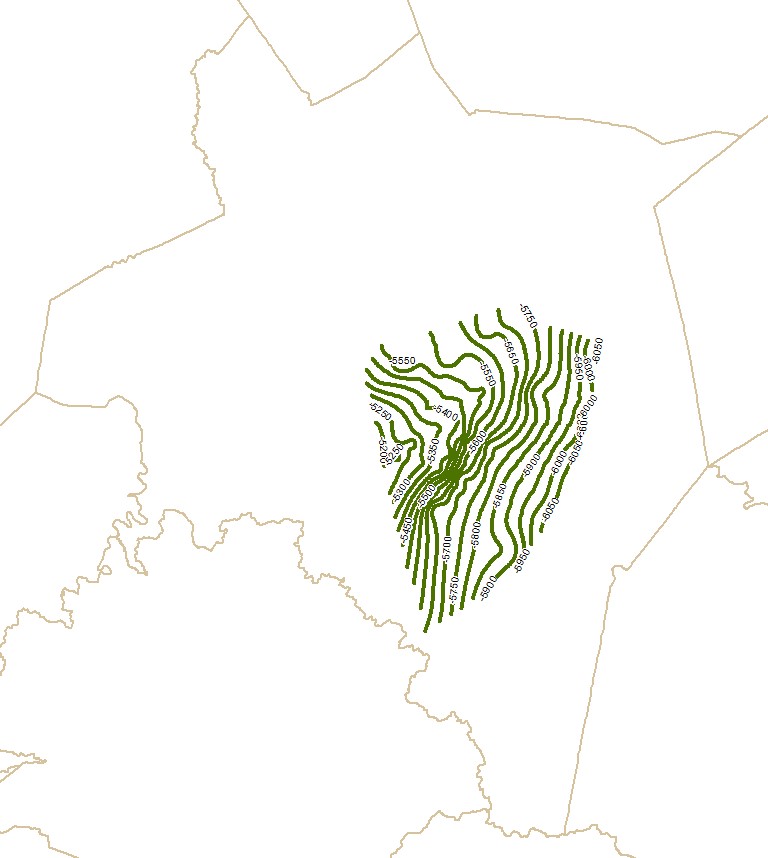

Description: <DIV STYLE="text-align:Left;font-size:12pt"><DIV><DIV><P STYLE="margin:0 0 0 0;"><SPAN><SPAN>This dataset provides a structure top (elevation) contour map with contour line values for the Tuscarora Sandstone of the Indian Creek field in Kanawha County, West Virginia (WV). The </SPAN></SPAN><SPAN>top values were taken from geophysical well logs and the structure top (elevation) contour map was generated using computer gridding/contouring in IHS Petra.</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN /><SPAN /></P><P STYLE="margin:0 0 0 0;"><SPAN><SPAN>Author/Originator:</SPAN></SPAN><SPAN /><SPAN /><SPAN><SPAN> Battelle Memorial Institute (Battelle), U.S. Department of Energy National Energy Technology Laboratory (NETL), West Virginia Geological &amp; Economic Survey (WVGES)</SPAN></SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN /></P><P STYLE="margin:0 0 0 0;"><SPAN>Date Created: 2018</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: Battelle Memorial Institute (Battelle), U.S. Department of Energy National Energy Technology Laboratory (NETL), West Virginia Geological & Economic Survey (WVGES)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 120950.74015699967
YMin: -1600051.6706053463
XMax: 189195.07151421302
YMax: -1506117.661861393
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [76, 115, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: ROUND([VALUE],0)
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 20 )
• AREA ( type: esriFieldTypeString, alias: AREA, length: 20 )
• VALUE ( type: esriFieldTypeString, alias: VALUE, length: 20 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
