Parent Layer: [+] Thickness

Name: TCRR Isopach (Ft; 2); WV (2018wi)

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

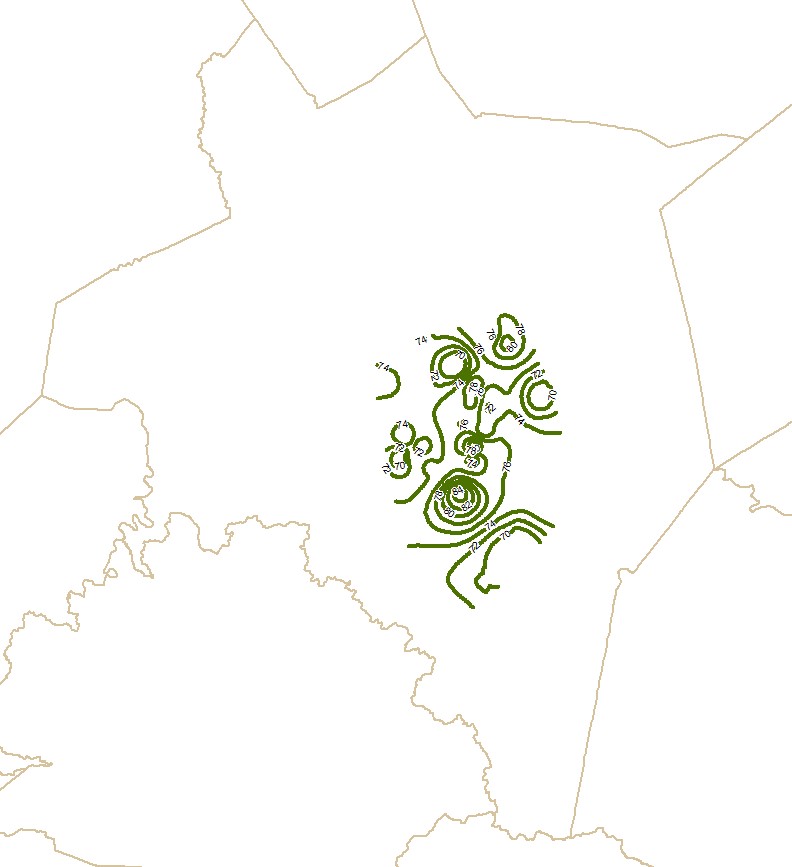

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 0 0;"><SPAN><SPAN>This dataset provides an isopach (thickness) contour map with contour line values for the Tuscarora Sandstone of the Indian Creek field in Kanawha County, West Virginia (WV). The thickness values were taken from geophysical well logs for wells having Tuscarora top and bottom depths; the</SPAN></SPAN><SPAN> isopach (thickness) contour map was generated using computer gridding/contouring in IHS Petra.</SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN /></P><P STYLE="margin:0 0 0 0;"><SPAN>Author/Originator:</SPAN><SPAN /><SPAN /><SPAN><SPAN> Battelle Memorial Institute (Battelle), U.S. Department of Energy National Energy Technology Laboratory (NETL), West Virginia Geological &amp; Economic Survey (WVGES)</SPAN></SPAN></P><P STYLE="margin:0 0 0 0;"><SPAN /></P><P STYLE="margin:0 0 0 0;"><SPAN>Date Created: 2018</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: Battelle Memorial Institute (Battelle), U.S. Department of Energy National Energy Technology Laboratory (NETL), West Virginia Geological & Economic Survey (WVGES)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 122170.1550170164
YMin: -1592340.1539490488
XMax: 175868.30215777928
YMax: -1507070.044116308
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [76, 115, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: ROUND([VALUE],0)
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 20 )
• AREA ( type: esriFieldTypeString, alias: AREA, length: 20 )
• VALUE ( type: esriFieldTypeString, alias: VALUE, length: 20 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
