Name: MRCL Structure Base (Ft; 250); WV (2018wvgs)

Display Field: DepthRange

Type: Feature Layer

Geometry Type: esriGeometryPolygon

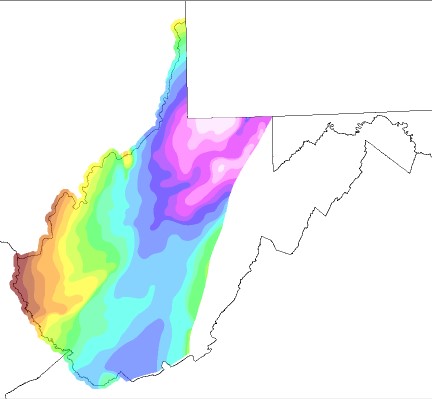

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This dataset contains a subsea depth contour map (polygons, feet, contour interval=250) for the base of Marcellus Formation (or the top of Onondaga Limestone and equivalents); the dataset is one product from the 2018 study, "Lithostratigraphy of Middle and Upper Devonian Organic-Rich Shales in West Virginia"*, conducted by the U.S. Department of Energy / National Energy Technology Laboratory (U.S. DOE/NETL) and the West Virginia Geological &amp; Economic Survey (WVGES). The study resulted in WVGES Reports of Investigation 35 (RI-35) and other accompanying WVGES RI-35 products. Data are from a state-wide sampling and localized study would be needed to be more certain of the details of any particular area. Location data for the study were obtained from the WVGES Oil and Gas Database; stratigraphic unit depths and interval thicknesses were determined from examination of geophysical well logs obtained from WVGES and IHS. The data were hand-contoured and then hand-digitized.</SPAN></P><P><SPAN>*Boswell, R.M. and S.E. Pool, 2018, Lithostratigraphy of Middle and Upper Devonian Organic-Rich Shales in West Virginia: West Virginia Geological &amp; Economic Survey, Reports of Investigation 35 (WVGES RI-35), 47 p, 31 f. Report and accompanying materials available online from the WVGES web site.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: West Virginia Geological & Economic Survey (WVGES); R.M. Boswell (U.S. DOE/NETL) and S.E. Pool (WVGES)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -197752.5070975472
YMin: -1951901.2929407991
XMax: 711290.6844785354
YMax: -670916.4705122053
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Depth
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: -2000
  Label: -2000 - -2250
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [128, 0, 0, 255]
  Outline:
  N/A
• Value: -2250
  Label: -2250 - -2500
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [173, 55, 0, 255]
  Outline:
  N/A
• Value: -2500
  Label: -2500 - -2750
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [227, 102, 0, 255]
  Outline:
  N/A
• Value: -2750
  Label: -2750 - -3000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 149, 0, 255]
  Outline:
  N/A
• Value: -3000
  Label: -3000 - -3250
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 200, 0, 255]
  Outline:
  N/A
• Value: -3250
  Label: -3250 - -3500
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 251, 0, 255]
  Outline:
  N/A
• Value: -3500
  Label: -3500 - -3750
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [191, 255, 0, 255]
  Outline:
  N/A
• Value: -3750
  Label: -3750 - -4000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [106, 255, 0, 255]
  Outline:
  N/A
• Value: -4000
  Label: -4000 - -4250
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [25, 255, 48, 255]
  Outline:
  N/A
• Value: -4250
  Label: -4250 - -4500
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [48, 255, 141, 255]
  Outline:
  N/A
• Value: -4500
  Label: -4500 - -4750
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [28, 255, 232, 255]
  Outline:
  N/A
• Value: -4750
  Label: -4750 - -5000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [54, 181, 255, 255]
  Outline:
  N/A
• Value: -5000
  Label: -5000 - -5250
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [54, 94, 255, 255]
  Outline:
  N/A
• Value: -5250
  Label: -5250 - -5500
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [38, 0, 255, 255]
  Outline:
  N/A
• Value: -5500
  Label: -5500 - -5750
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [140, 0, 255, 255]
  Outline:
  N/A
• Value: -5750
  Label: -5750 - -6000
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [221, 0, 255, 255]
  Outline:
  N/A
• Value: -6000
  Label: -6000 - -6250
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 79, 255, 255]
  Outline:
  N/A
• Value: -6250
  Label: -6250 - -6500
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 156, 255, 255]
  Outline:
  N/A
• Value: -6500
  Label: -6500 - -6750
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 222, 255, 255]
  Outline:
  N/A
Transparency: 40
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• DepthRange ( type: esriFieldTypeString, alias: Subsea Elevation Interval Range, Feet, length: 14 )
• Depth ( type: esriFieldTypeInteger, alias: Subsea Elevation, Feet )
