Parent Layer: [+] Unit/Play Outline(s), Etc.

Name: MRCL Potential Area Outline; NY/PA/OH/WV (2019kygs)

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

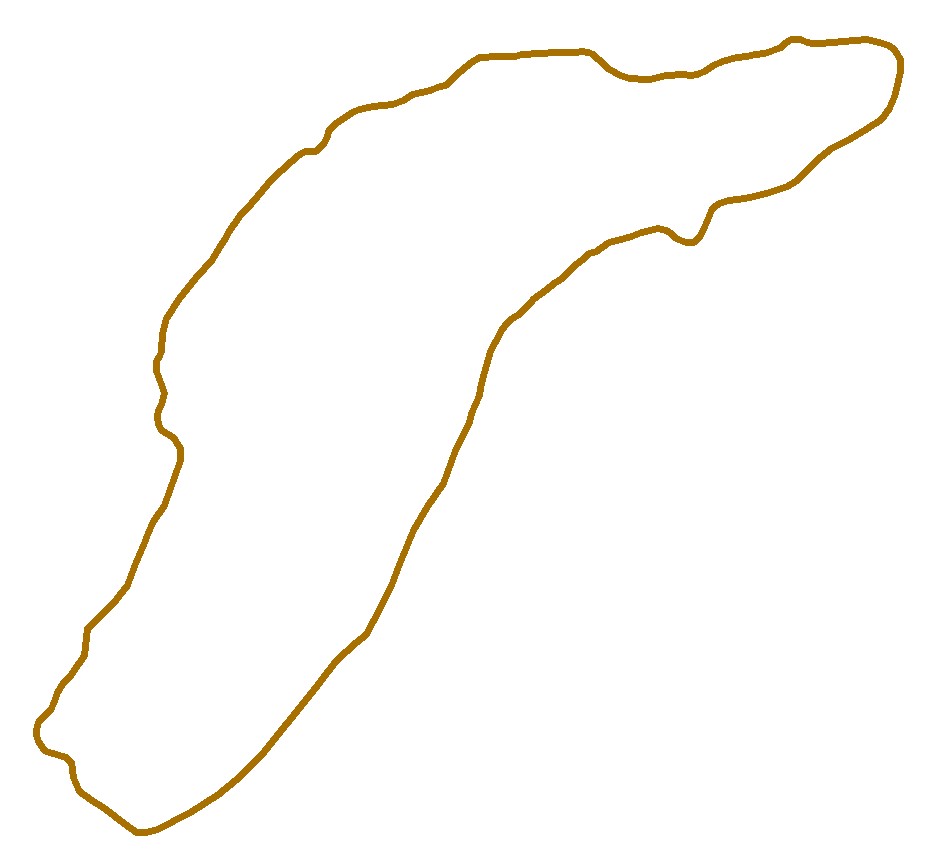

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This is an outline of the Marcellus potential area extent used to clip Marcellus Shale carbon storage grid points. Area along the northern and northwestern border of the outline is determined too shallow (less than 2500 feet), and area along west to southwestern border is considered too thin to evaluate (less than 25 feet).</SPAN></P><P><SPAN>Boundary outline of carbon storage potential was generated for gridding and results for outlined area were presented in Appalachian Basin topical report (Carter, and others, 2019).</SPAN></P><P><SPAN>Author/Originator: Thomas N. Sparks, Brandon C. Nuttall, Stephen F. Greb, Kentucky Geological Survey</SPAN></P><P><SPAN>Date Created: 2019</SPAN></P><P><SPAN>Reference cited:</SPAN></P><P><SPAN>Carter, K.M., Moore, J.P., Lewis, J.E., Nuttall, B.C., Dinterman, P., Daft, G.W., Jr., Anthony, R.V., Schmid, K.W., Dunst, B.J., Sparks, T.N., Greb, S.F., Solis, M.P., McDonald, J., and Ortt, R.A., 2019, Midwest Regional Carbon Sequestration Partnership Phase III—Regional geologic characterization enhanced recovery opportunities in the Appalachian Basin: Contract report to U.S. DOE, Cooperative Agreement No. DE-FC26-05NT42589, 103 p.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -152541.84021138476
YMin: -1935838.9800604405
XMax: 2026175.2628555463
YMax: 64883.270386402175
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [168, 112, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 20 )
• AREA ( type: esriFieldTypeString, alias: AREA, length: 20 )
• VALUE ( type: esriFieldTypeString, alias: VALUE, length: 20 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
