Parent Layer: [+] Thickness

Name: MNNG Well Control; WV (2018wvgs)

Display Field: api

Type: Feature Layer

Geometry Type: esriGeometryPoint

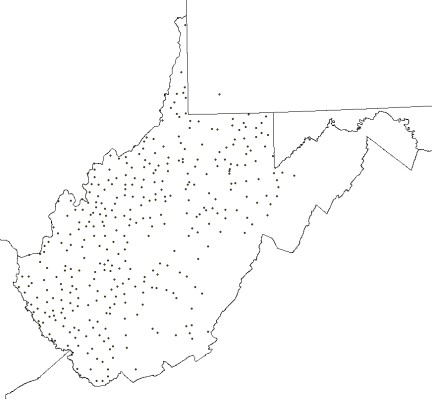

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This dataset contains thickness (feet) well control points for the Mahantango Formation for West Virginia; the dataset is one product from the 2018 study, "Lithostratigraphy of Middle and Upper Devonian Organic-Rich Shales in West Virginia"*, conducted by the U.S. Department of Energy / National Energy Technology Laboratory (U.S. DOE/NETL) and the West Virginia Geological &amp; Economic Survey (WVGES). The study resulted in WVGES Reports of Investigation 35 (RI-35) and other accompanying WVGES RI-35 products. Location data for the study were obtained from the WVGES Oil and Gas Database; stratigraphic unit depths and interval thicknesses were determined from examination of geophysical well logs obtained from WVGES and IHS.</SPAN></P><P><SPAN>*Boswell, R.M. and S.E. Pool, 2018, Lithostratigraphy of Middle and Upper Devonian Organic-Rich Shales in West Virginia: West Virginia Geological &amp; Economic Survey, Reports of Investigation 35 (WVGES RI-35), 47 p, 31 f. Report and accompanying materials available online from the WVGES web site.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: West Virginia Geological & Economic Survey (WVGES); R.M. Boswell (U.S. DOE/NETL) and S.E. Pool (WVGES)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -165234.65975098938
YMin: -1921711.3044098474
XMax: 833805.9628859798
YMax: -692008.179918486
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [115, 76, 0, 255]
Size: 2.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPointLabelPlacementBelowRight
Label Expression: [MNNG_THK] CONCAT [MNNG_QDL]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 750000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• api ( type: esriFieldTypeDouble, alias: API Number )
• LOG_ELEV ( type: esriFieldTypeInteger, alias: Elevation from Log, Feet )
• MNNG_MD ( type: esriFieldTypeInteger, alias: Top of Mahantango, Log-Measured Depth, Feet )
• MNNG_SS ( type: esriFieldTypeInteger, alias: Top of Mahantango, Subsea Depth, Feet )
• MNNG_THK ( type: esriFieldTypeInteger, alias: Mahantango Thickness, Feet )
• MNNG_QDL ( type: esriFieldTypeString, alias: Mahantango, Particularly Questionable Data Indicated By *, length: 1 )
• NOTES ( type: esriFieldTypeString, alias: Notes, length: 254 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
