Name: DVNNMU Well Control (Structure); WV (2018wvgs)

Display Field: API

Type: Feature Layer

Geometry Type: esriGeometryPoint

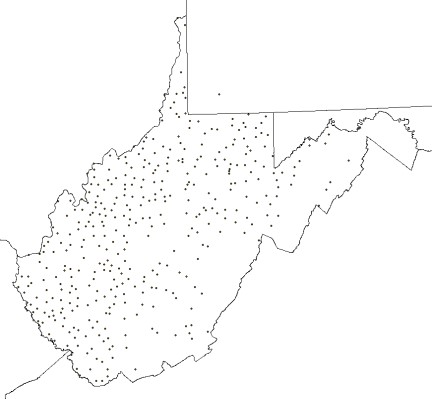

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This dataset contains structure (feet) well control points for the Middle and Upper Devonian organic-rich shales for West Virginia; the dataset is one product from the 2018 study, "Lithostratigraphy of Middle and Upper Devonian Organic-Rich Shales in West Virginia"*, conducted by the U.S. Department of Energy / National Energy Technology Laboratory (U.S. DOE/NETL) and the West Virginia Geological &amp; Economic Survey (WVGES). The study resulted in WVGES Reports of Investigation 35 (RI-35) and other accompanying WVGES RI-35 products. Location data for the study were obtained from the WVGES Oil and Gas Database; stratigraphic unit depths and interval thicknesses were determined from examination of geophysical well logs obtained from WVGES and IHS.</SPAN></P><P><SPAN>*Boswell, R.M. and S.E. Pool, 2018, Lithostratigraphy of Middle and Upper Devonian Organic-Rich Shales in West Virginia: West Virginia Geological &amp; Economic Survey, Reports of Investigation 35 (WVGES RI-35), 47 p, 31 f. Report and accompanying materials available online from the WVGES web site.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: West Virginia Geological & Economic Survey (WVGES); R.M. Boswell (U.S. DOE/NETL) and S.E. Pool (WVGES)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -165233.56465927314
YMin: -1921713.9600719148
XMax: 967552.0371074609
YMax: -692011.1750613841
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [115, 76, 0, 255]
Size: 2.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• API ( type: esriFieldTypeDouble, alias: API Number )
• CMP_YEAR ( type: esriFieldTypeInteger, alias: Year on Well Log )
• LOG_ELEV ( type: esriFieldTypeInteger, alias: Elevation on Well Log, Feet )
• SS_LPHRN ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Lower Part Huron Member of Ohio Shale )
• SS_JAVA ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Java Formation )
• SS_ANGL ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Angola Shale Member of West Falls Formation )
• SS_RNSR ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Rhinestreet Shale Member of West Falls Formation/Rhinestreet Shale )
• SS_CSHQ ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Cashaqua Shale Member of Sonyea Formation )
• SS_MDLX ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Middlesex Shale Member of Sonyea Formation/Middlesex Shale )
• SS_WRVR ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, West River Shale Member of Genesee Formation )
• SS_GBRK ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Geneseo Shale Member of Genesee Formation/Burket Shale Member of Harrell Shale )
• SS_TLLY ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Tully Limestone )
• SS_MNNG ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Mahantango Formation )
• SS_OKCKA ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Oatka Creek Member of Marcellus Formation (A)/"upper Marcellus A" )
• SS_OKCKB ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Oatka Creek Member of Marcellus Formation (B)/"upper Marcellus B" )
• SS_CRVL ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Cherry Valley Member of Marcellus Formation/drillers' "Cherry Valley" )
• SS_USPG ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Union Springs Member of Marcellus Formation/"lower Marcellus" )
• SS_TRSZ ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, "Transition Zone"of Marcellus Formation )
• SS_ONDGE ( type: esriFieldTypeInteger, alias: Top, Subsea Depth in Feet, Onondaga Limestone and Equivalents )
• NOTES ( type: esriFieldTypeString, alias: Notes, length: 254 )
