Name: CLVD Structure Top (Ft; 100); OH(AB) (2017ohgs)

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

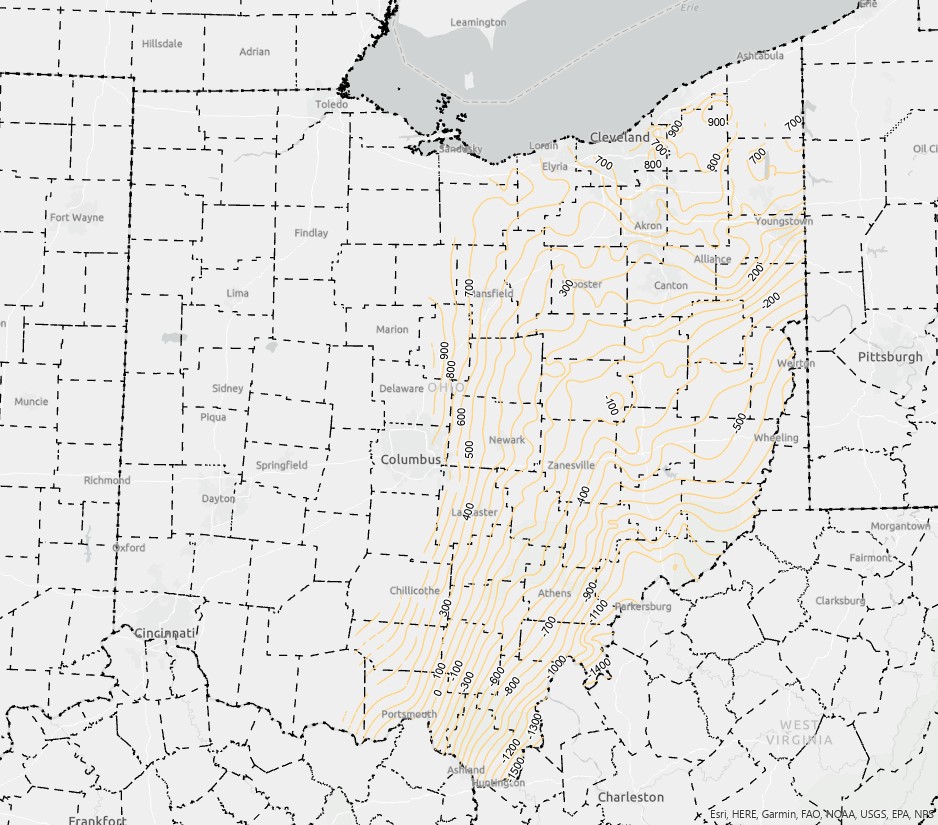

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 11 0;"><SPAN>This data set was originally created as a deliverable for Midwest Regional Carbon Sequestration Partnership (MRCSP) project, funded by the U.S. Department of Energy Cooperative Agreement No. DE-FC26-05NT42589. This data set contains subsurface information compiled from digital public data at the Ohio Department of Natural Resources (ODNR) Division of Geological Survey. Petra software was used to pick the elevation of the top of the Cleveland Shale, and to create and grid an elevation model for the unit. The elevation model was then imported into ArcGIS, and contoured using Spatial Analyst. The resulting contour lines were edited to remove sharp corners and inconsistencies with well data points. The boundary of the map data (grid and contours) to the west and south is the border of the state of Ohio. The data extent to the north and west is the Devonian outcrop belt in Ohio. </SPAN></P><P><SPAN>Author/Originator: Kyle M. Metz and Matthew S. Erenpreiss</SPAN></P><P><SPAN>Date Created: 2017</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: Midwest Regional Carbon Sequestration Partnership (MRCSP) and the Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -399443.180483129
YMin: -1501439.723397497
XMax: 409728.5067441101
YMax: -294419.588821877
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [255, 211, 127, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: [cntr_lbl]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 20 )
• AREA ( type: esriFieldTypeString, alias: AREA, length: 20 )
• VALUE ( type: esriFieldTypeString, alias: VALUE, length: 20 )
• cntr_lbl ( type: esriFieldTypeInteger, alias: cntr_lbl )
• FID ( type: esriFieldTypeOID, alias: FID )
• OBJECTID ( type: esriFieldTypeInteger, alias: OBJECTID )
• Shape_Leng ( type: esriFieldTypeDouble, alias: Shape_Leng )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
