Name: ONDG to LCKP Isopach (Ft; 500); MRCSP (2005mrcsp1)

Display Field: ID

Type: Feature Layer

Geometry Type: esriGeometryPolyline

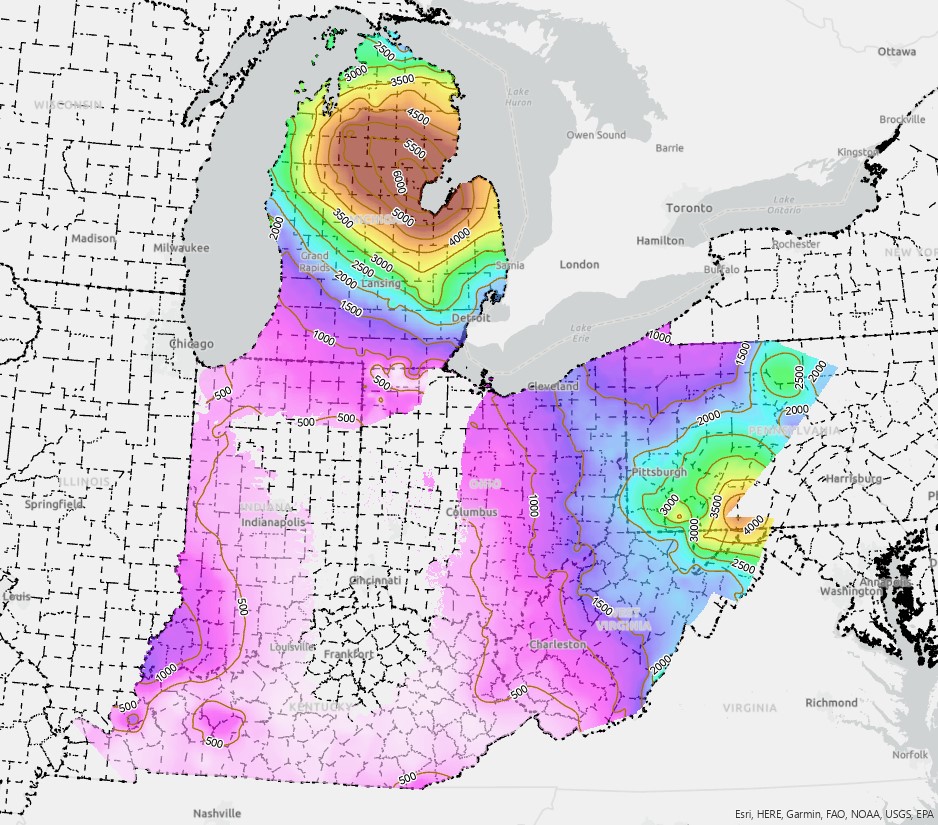

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This isopach map shows the thickness of the interval from the top of the Onondaga to the base of the Lockport Dolomite and latterly equivalent Devonian and Silurian units. It was created by computer interpolation (kriging) of borehole data for much of the map extent. In several places the computer generated contours were modified by hand to accommodate faults or where such modification was deemed necessary by other geologic information that was available. In Kentucky, the extensive faulting required that the data be interpolated by hand. The map shows the thickness from the top of the Traverse Limestone to the base of the Niagara Group within Michigan. Within Indiana the thickness is displayed by the tops of the Traverse in eastern Indiana and North Vernon Limestone in western Indiana, to the top of the Salamonie Dolomite. In western Ohio, the top of the Olentangy to the base of the Lockport Dolostone is the thickness. In eastern Kentucky the top of the Onondaga Limestone to the base of the Lockport Dolostone composes the thickness. In West Virginia there is a facies change from east to west between the McKenzie formation and the Lockport Dolostone. There is also a facies change from east to west between the Needmore Shale, Huntersville Chert, and the Onondaga in West Virginia. From the tops of the Needmore, Huntersville and the Onondaga, to the base of the McKenzie and Lockport, shows the thickness in West Virginia. In Pennsylvania the Mifflintown Formation transitions to the Lockport from East to West. From the top of the Onondaga to the base of these units displays the thickness within Pennsylvania. Within Maryland the tops of the Needmore Shale and the Onondaga, which show a facies change from east to west respectively to the base of the McKenzie, is the thickness. More detailed mapping of these units is planned for phase II of the project.</SPAN></P><P><SPAN>Author/Originator: The Geological Surveys of Ohio, Kentucky, Maryland, Michigan, Pennsylvania and West Virginia</SPAN></P><P><SPAN>Date Created: 2005</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: Midwest Regional Carbon Sequestration Partnership (MRCSP) and the Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1872835.1921413243
YMin: -2151591.732451304
XMax: 1290060.4930923295
YMax: 1185750.0642783062
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [168, 112, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: [CONTOUR]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• ID ( type: esriFieldTypeInteger, alias: ID )
• CONTOUR ( type: esriFieldTypeDouble, alias: CONTOUR )
• Shape_len ( type: esriFieldTypeDouble, alias: Shape_len )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
