Parent Layer: [+] Structure

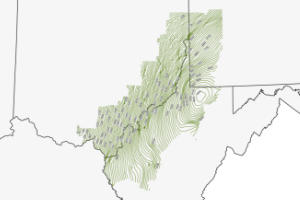

Name: CTRC/MDIN Structure Top (Ft; 100); PA/OH/WV (2017ash)

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: This dataset contains a structure/elevation map for the Clinton/Medina Group in Ohio, West Virginia, and Pennsylvania.Author/Originator: Kristin M. Carter, Douglas G. Patchen, Jessica P. Moore, Mohammad Fakhari, Gary W. Daft, Jr., Michael Solis, Brian J. Dunst, Robin V. Anthony, Katherine W. Schmid, Kyle Metz, Philip Dinterman, Julie M. Bloxson, Erica N. Schubert, John SaucerDate Created: July 31, 2017

Service Item Id: 63ce3bea681b4f558de95e64113c0e00

Copyright Text: Appalachian Storage Hub (ASH)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -360996.23977771256
YMin: -1728410.8537076942
XMax: 639486.1230297955
YMax: -482734.998135111
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [76, 115, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: [contour]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• NAME ( type: esriFieldTypeString, alias: NAME, length: 20 )
• AREA ( type: esriFieldTypeString, alias: AREA, length: 20 )
• VALUE ( type: esriFieldTypeString, alias: VALUE, length: 20 )
• contour ( type: esriFieldTypeInteger, alias: contour )
• FID ( type: esriFieldTypeOID, alias: FID )
• OBJECTID ( type: esriFieldTypeInteger, alias: OBJECTID )
• Shape_Leng ( type: esriFieldTypeDouble, alias: Shape_Leng )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
