Parent Layer: [+] Thickness

Name: HMLN Isochore (Ft; 50); WV (2018wvgs)

Display Field: ThkRange

Type: Feature Layer

Geometry Type: esriGeometryPolygon

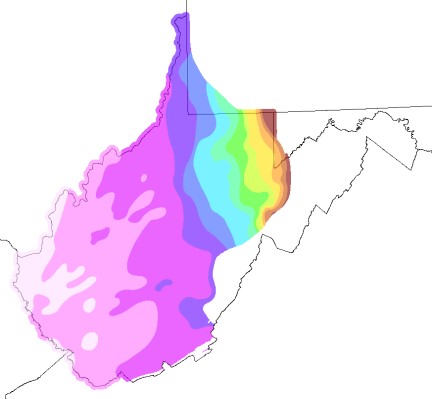

Description: This dataset contains an isochore contour map (ploygons, feet, contour interval=50) for the Hamilton Group for West Virginia; the dataset is one product from the 2018 study, "Lithostratigraphy of Middle and Upper Devonian Organic-Rich Shales in West Virginia"*, conducted by the U.S. Department of Energy / National Energy Technology Laboratory (U.S. DOE/NETL) and the West Virginia Geological & Economic Survey (WVGES). The study resulted in WVGES Reports of Investigation 35 (RI-35) and other accompanying WVGES RI-35 products. Data are from a state-wide sampling and localized study would be needed to be more certain of the details of any particular area. Location data for the study were obtained from the WVGES Oil and Gas Database; stratigraphic unit depths and interval thicknesses were determined from examination of geophysical well logs obtained from WVGES and IHS. The data were hand-contoured and then hand-digitized.*Boswell, R.M. and S.E. Pool, 2018, Lithostratigraphy of Middle and Upper Devonian Organic-Rich Shales in West Virginia: West Virginia Geological & Economic Survey, Reports of Investigation 35 (WVGES RI-35), 47 p, 31 f. Report and accompanying materials available online from the WVGES web site.

Service Item Id: 63ce3bea681b4f558de95e64113c0e00

Copyright Text: West Virginia Geological & Economic Survey (WVGES); R.M. Boswell (U.S. DOE/NETL) and S.E. Pool (WVGES)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -197752.50709756196
YMin: -1951901.2929407991
XMax: 769988.9338099938
YMax: -670910.7923858315
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Thickness
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 550
  Label: 550+
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [128, 0, 0, 255]
  Outline:
  N/A
• Value: 500
  Label: 500 - 550
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [201, 77, 0, 255]
  Outline:
  N/A
• Value: 450
  Label: 450 - 500
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 149, 0, 255]
  Outline:
  N/A
• Value: 400
  Label: 400 - 450
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 225, 0, 255]
  Outline:
  N/A
• Value: 350
  Label: 350 - 400
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [191, 255, 0, 255]
  Outline:
  N/A
• Value: 300
  Label: 300 - 350
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [47, 255, 0, 255]
  Outline:
  N/A
• Value: 250
  Label: 250 - 300
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [48, 255, 141, 255]
  Outline:
  N/A
• Value: 200
  Label: 200 - 250
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [33, 233, 255, 255]
  Outline:
  N/A
• Value: 150
  Label: 150 - 200
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [54, 94, 255, 255]
  Outline:
  N/A
• Value: 100
  Label: 100 - 150
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [98, 0, 255, 255]
  Outline:
  N/A
• Value: 50
  Label: 50 - 100
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [221, 0, 255, 255]
  Outline:
  N/A
• Value: 1
  Label: 1 - 50
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 117, 255, 255]
  Outline:
  N/A
• Value: 0
  Label: 0
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 222, 255, 255]
  Outline:
  N/A
Transparency: 40
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• ThkRange ( type: esriFieldTypeString, alias: Thickness Interval Range, Feet, length: 12 )
• Thickness ( type: esriFieldTypeSmallInteger, alias: Thickness, Feet )
