Parent Layer: [+] Structure

Name: STPR Base Well Control; IN/KY/IL+ (2024kygs)

Display Field: WELLNAME

Type: Feature Layer

Geometry Type: esriGeometryPoint

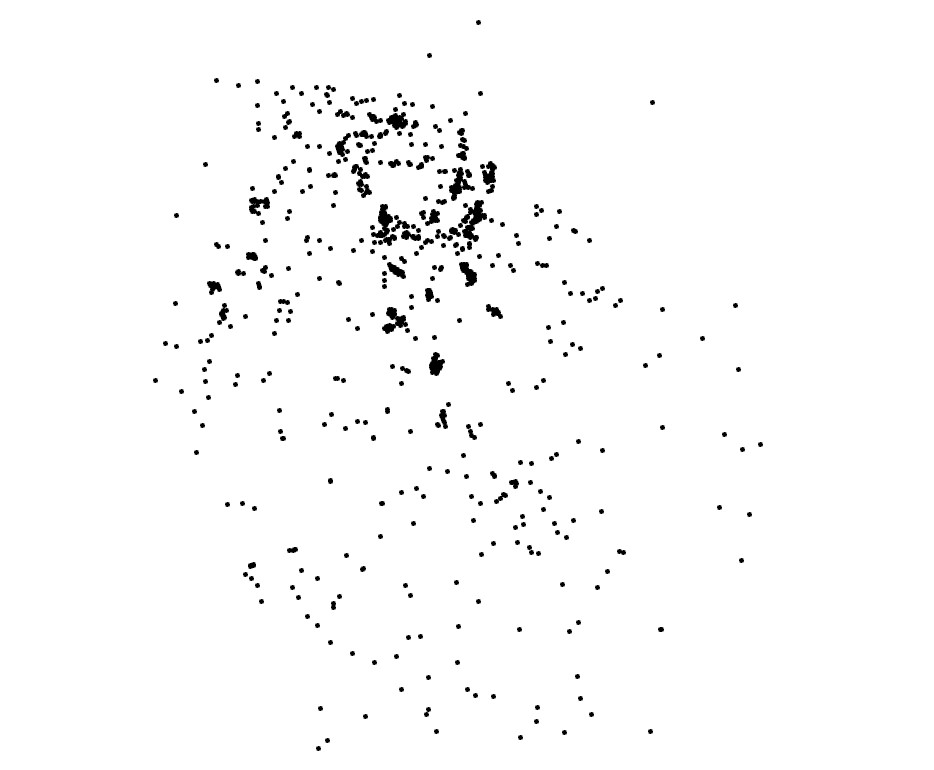

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This dataset contains the oil and gas well locations and stratigraphic tops information used to create elevation maps for the Base of St. Peter Sandstone (top of Knox Group) in the Illinois Basin area. This data was calculated from separate tops and thickness data for the St. Peter Sandstone as provided in the Illinois Basin Regional Structure Isopach Mapping 2021 MRCI data files (ISGS, 2021). The Base of the St. Peter Sandstone served as a proxy for the top of the Everton Dolomite in the southern Illinois Basin and the top of the Shakopee Dolomite in central and northern Illinois and adjacent western Indiana.</SPAN></P><P><SPAN>Stratigraphic tops for the Base of St. Peter Sandstone are measured depth feet (STPRB_MD) and subsea feet (STPRB_SS). This subset of well control points contains all identified Base of St. Peter Sandstone tops reported during this compilation and is restricted to the Illinois Basin area. In addition, some selected wells also provide tops for the Everton Dolomite (EVRN_MD, EVRN_SS) and Knox and Prairie du Chien Group units (Shakopee Dolomite, Cotter Dolomite) (KNOX_MD, KNOX_SS). Null data for Everton Dolomite or Knox Group tops are recorded as -99999.</SPAN></P><P><SPAN>Author/Originator: Tom Sparks, Kentucky Geological Survey</SPAN></P><P><SPAN>Date Created: 2024</SPAN></P></DIV></DIV></DIV>

Service Item Id: 4298427439e14b5792e442b7b5b07939

Copyright Text: Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 1000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -2629609.797923416
YMin: -1905477.5585460812
XMax: -802968.0105974972
YMax: 289038.70858058333
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [28, 115, 255, 255]
Size: 2.5
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[28, 115, 255, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• UWI_API ( type: esriFieldTypeString, alias: UWI_API, length: 20 )
• WELLNAME ( type: esriFieldTypeString, alias: WELLNAME, length: 50 )
• LAT ( type: esriFieldTypeDouble, alias: LAT )
• LON ( type: esriFieldTypeDouble, alias: LON )
• ELEV ( type: esriFieldTypeInteger, alias: ELEV )
• TD ( type: esriFieldTypeInteger, alias: TD )
• FM_TD ( type: esriFieldTypeString, alias: FM_TD, length: 25 )
• SYM ( type: esriFieldTypeString, alias: SYM, length: 20 )
• COUNTY ( type: esriFieldTypeString, alias: COUNTY, length: 30 )
• STATE ( type: esriFieldTypeString, alias: STATE, length: 20 )
• SOURCE ( type: esriFieldTypeString, alias: SOURCE, length: 20 )
• DATUM ( type: esriFieldTypeInteger, alias: DATUM )
• STPRB_MD ( type: esriFieldTypeInteger, alias: STPRB_MD )
• STPRB_SS ( type: esriFieldTypeInteger, alias: STPRB_SS )
• EVRN_MD ( type: esriFieldTypeInteger, alias: EVRN_MD )
• EVRN_SS ( type: esriFieldTypeInteger, alias: EVRN_SS )
• KNOX_MD ( type: esriFieldTypeInteger, alias: KNOX_MD )
• KNOX_SS ( type: esriFieldTypeInteger, alias: KNOX_SS )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
