Parent Layer: [+] Thickness

Name: NDMR Isopach (Ft; 25); PA/MD/WV (2005mrcsp1)

Display Field: CONTOUR

Type: Feature Layer

Geometry Type: esriGeometryPolyline

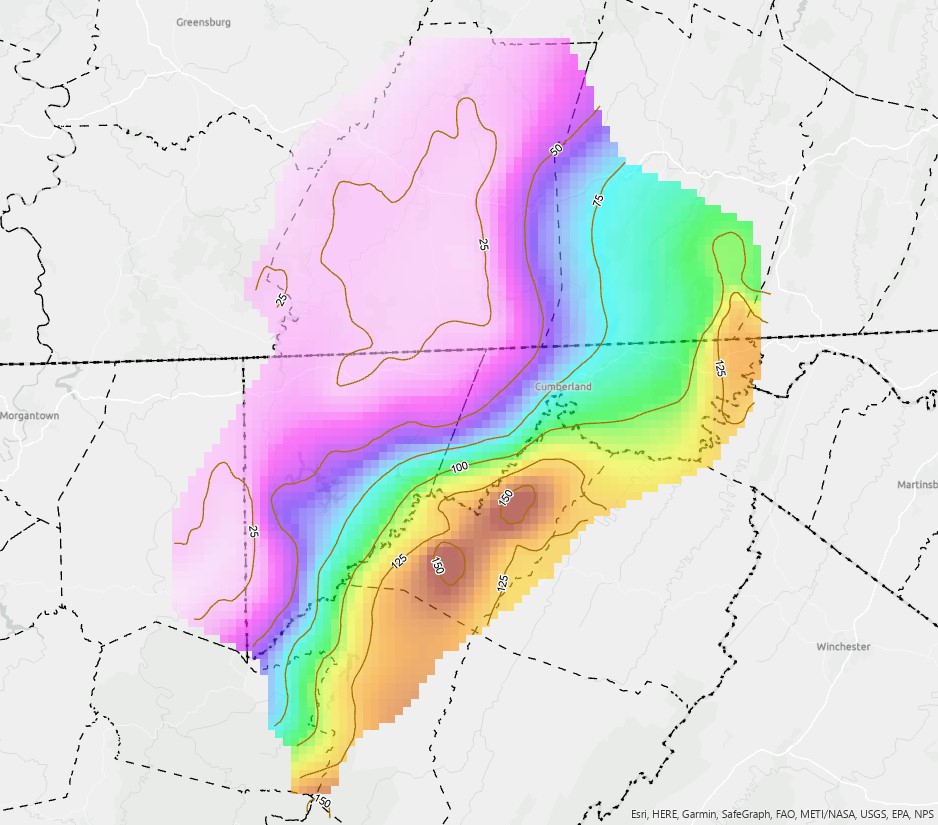

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This file is a component of the digital isopach map of the Needmore Formation in Maryland, West Virginia and Pennsylvania (1: 500,000 scale). The isopach map is based on available borehole data for the Needmore Formation provided by West Virginia, Pennsylvania and Maryland and compiled by the Maryland Geological Survey. The isopach map includes the data points of unit thickness and the lines contouring estimated equal unit thickness at a 25-foot contour interval. This file includes only the isopach lines developed as digital line (arc) features in ESRI ArcGIS Shapefile format. Isopach contours (25-foot contour interval) were constructed by interpolation using Ordinary Kriging and subsequent minor manual methods applied to the selected dataset of available thickness data points from the compiled borehole information. The Ordinary Kriging was completed using the Geostatistical Analyst extension in ESRI's ArcGIS software. The selected thickness data measurements used to develop the isopach contour lines are provided in the associated point shapefile, NEED_THK_PTS_MRCSP (see metadata associated with that file for details). This file and the related Needmore Isopach Map are provided in a projection specifically developed for this project, referred to as MRCSP_North_America_Albers_Equal_Area_Conic. This projection is an Albers Equal Area Conic NAD83 projection (in survey feet) that was adjusted by the MRCSP as follows: the central meridian to -82.0 degrees, and the standard parallels to 38.5 and 43 degrees (to better bracket the project's specific area of use).</SPAN></P><P><SPAN>Production of the digital geospatial data set was funded, in part, by the United States Department of Energy's National Energy Technology Laboratory (DOE/NETL) via the Midwest Carbon Sequestration Partnership (MRCSP), which is led by Battelle. The MRCSP--of which the MGS is a partner--is one of seven regional partnerships established by the U.S. DOE/NETL. The views and the opinions of authors expressed herein do not necessarily state or reflect those of the members of the MRCSP, the United States Government or any agency thereof.</SPAN></P><P><SPAN>The Maryland Geological Survey received support in the development and production of the digital geospatial data set in ArcGIS format from Towson University, Center for Geographic Information Sciences.</SPAN></P><P><SPAN>Author/Originator: Maryland Geological Survey</SPAN></P><P><SPAN>Date Created: 2005</SPAN></P></DIV></DIV></DIV>

Service Item Id: 3a55f6b38a874c069a1522edfe711a0d

Copyright Text: Midwest Regional Carbon Sequestration Partnership (MRCSP) and the Midwest Regional Carbon Initiative (MRCI)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 665637.7980694372
YMin: -1299765.4257520235
XMax: 1039744.6809299843
YMax: -847556.159536124
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [168, 112, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: [CONTOUR]
Use Coded Values: true
Symbol:
Color: [0, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: center
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none

Min. Scale: 0.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: false
Supports Having Clause: false
Supports Count Distinct: false
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• CONTOUR ( type: esriFieldTypeInteger, alias: CONTOUR )
• Shape_len ( type: esriFieldTypeDouble, alias: Shape_len )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
